1750i Wood Insert
With the 1750i Wood Insert you can convert your old, inefficient masonry or zero clearance fireplace into a great source of heat for your medium to large sized home. This wood burning insert is more than five times as efficient as an open fireplace and features a built-in convection chamber to circulate and distribute heat throughout your home. It also features a bypass damper that allows quick and easy fire startups and smoke-free reloads. Experience the performance and quality you’ve come to expect in Lopi with an insert that is designed to be affordable, good looking and just plain heats!
The 1750i wood fireplace insert even features a large cooktop surface that is great to utilize during power outages.
Specs
Primary Specs | |
---|---|
Heating Capacity | 1,200 to 2,000 Sq. Feet |
Heat Output | 72,400 BTU's / Hour |
Steady State Efficiency | Up to 78.8% |
Maximum Burn Time | Up to 10 Hours |
Firebox Size | 2.2 Cubic Feet |
Maximum Log Size | 18" |
Emissions | 1.9 Grams Per Hour |
Weight | 380 Pounds |
Construction | 1/4" to 5/16" Steel Plate |

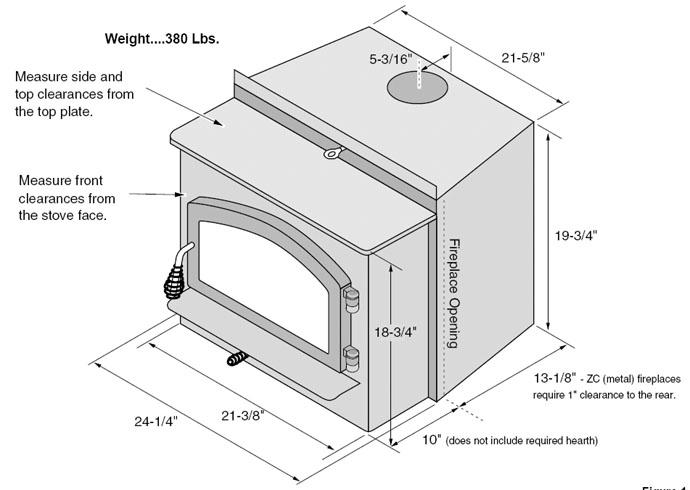

Installation
Documents
- Brochure
- Owner’s Manual
- Accessories Manual
- Lopi Front Blower Installation
- 1 Piece Surround Panel Installation, Revere + 1750i
- Instructions – High Temperature Wood Insert Wiring Kit
- Kindling Rack Dimensions – Tall
- Mantel Shield – Instructions
- Telescoping Legs – Instructions
- Vent Kit Instructions – Wood Masonry Chimney Reline Kit
- Vent Kit Instructions – Wood ZC Chimney Reline Kit
- Wood Insert Flue Adapter Instructions – Stainless Steel 4 to 7 Inch Offset
