Flush Wood Plus Wood Insert Rect
The high-performance heat and superior design of this wood fireplace insert are truly out of the ordinary. Our exclusive flush-to-the fireplace design enhances the beautiful lines of a traditional fireplace and provides modern heating efficiency. The huge view of the fire through our large, single rectangular door remains clear thanks to our air wash system. The Flush Wood Plus Rectangular wood insert also features a variable speed, high volume blower which can utilize the hard-wiring option kit to preserve the classic good looks of your existing fireplace without a power cord showing on the hearth. Heat a room or a home up to 2,000 square feet with less wood and longer burn times. The Flush Wood Plus Rectangular is designed to be installed in both masonry and zero clearance wood burning fireplaces.
Specs
Primary Specs | |
---|---|
Heating Capacity | 1,200 to 2,000 Sq. Feet |
Heat Output | Up to 73,300 BTU's / Hour |
Steady State Efficiency | Up to 76.9% |
Maximum Burn Time | Up to 10 Hours |
Firebox Size | 2.2 Cubic Feet |
Maximum Log Size | 24" |
Emissions | 4.4 Grams Per Hour |
Weight | 450 Pounds |
Construction | 5/16" & 1/4" Heavy Gauge Plate Steel |

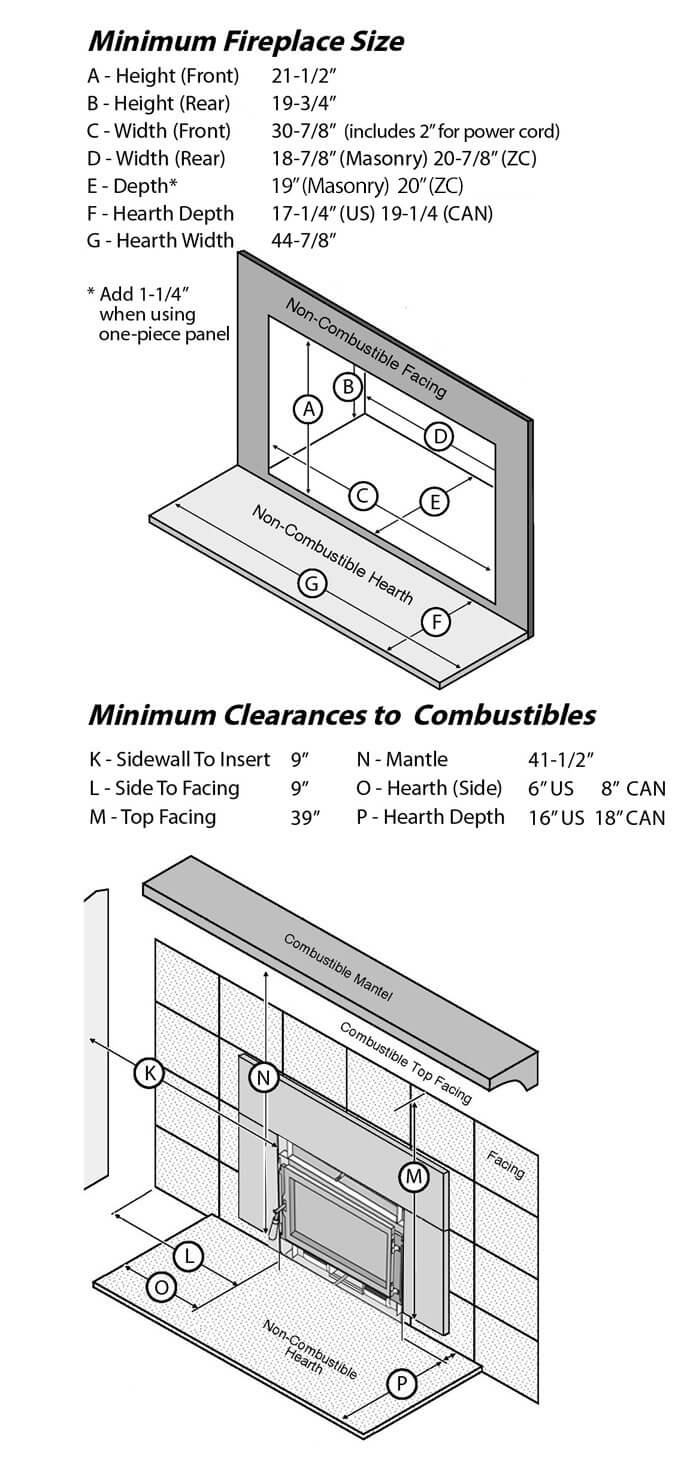

Installation
Documents
- Brochure
- Owner’s Manual
- Accessories Manual
- Face Installation – Flush Wood Plus
- Flush Wood Plus Metropolitan, Univ Face Install Instructions
- GreenStart Igniter 2 for Inserts
- GreenStart Replacement Parts List
- Flush Wood Plus Rectangle – Cheat Sheet
- Flush Wood Plus Firebrick Order Form
- Instructions – High Temperature Wood Insert Wiring Kit
- Kindling Rack Dimensions – Tall
- Vent Kit Instructions – Wood Masonry Chimney Reline Kit
- Vent Kit Instructions – Wood ZC Chimney Reline Kit
- Wood Insert Flue Adapter Instructions – Stainless Steel 4 to 7 Inch Offset
Options
Faces / Doors
Universal, Black Painted
Faces / Doors
Times Square
